ZT68 Aluminum Bolts: Tackling Corrosion and Weight Issues in

In cutting-edge manufacturing sectors such as New Energy Vehicles (NEVs), embodied intelligence, Low-Altitude Conventional/Unmanned Aerial Vehicles (UAVs), and high-performance AI servers, the tug-of-war between "lightweighting" and "high strength" never stops. As lightweight structural components like magnesium-aluminum alloys and carbon fiber composites see large-scale adoption, traditional steel fasteners are confronting severe, irreconcilable engineering bottlenecks in multi-material hybrid joints.

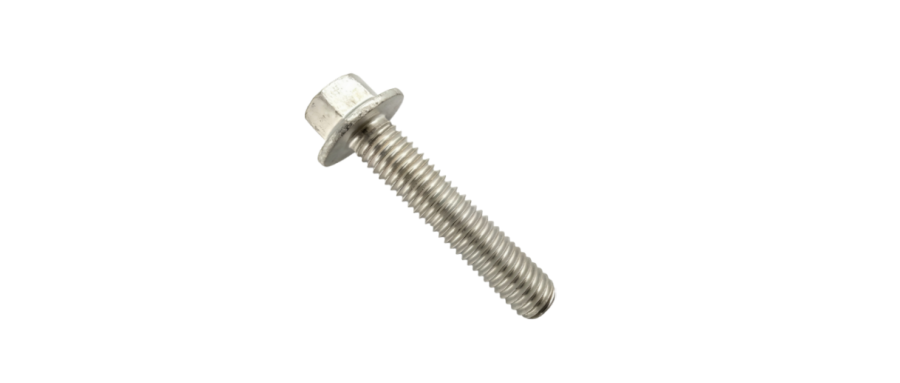

As a leading innovator in precision fastening technology, YF Zhichengjia (YF ZCJ)—backed by over 20 years of fastener design and manufacturing experience and guided by rigorous automotive-grade R&D standards—officially introduces its strategic core product: the ZT68 Ultra-High-Strength Aluminum Alloy Bolt. Boasting a tensile strength of 630 MPa—directly rivaling conventional steel fasteners—this product completely disrupts traditional joining paradigms, delivering an unparalleled, one-stop lightweight fastening solution for the industry.

01. Core Pain Points in Traditional Multi-Material Joining

In the assembly of modern multi-material bodies or heterogeneous structural components, traditional carbon steel bolts consistently hit technical bottlenecks:

1. The Risk of Galvanic Corrosion: A substantial electrochemical potential difference exists between steel and aluminum/magnesium substrates. When exposed to harsh environments like moisture and salt spray, severe galvanic corrosion is triggered, leading to substrate powdering or catastrophic joint failure.

2. Structural Redundancy & Space Constraints: Because the stiffness of steel is vastly superior to that of aluminum or magnesium components, traditional designs mandate a deep thread engagement length (typically >2 to 3d, where d is the nominal diameter) to prevent substrate thread strip-out. This severely restricts the design envelope for lightweight enclosures and thin-walled parts.

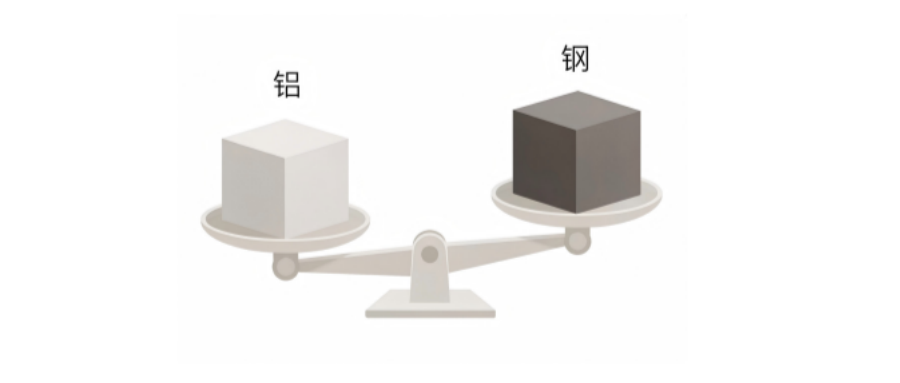

3. "Dead Weight" Reversing Lightweight Benefits: Due to the high density of steel fasteners, their mass use across complex assemblies frequently cancels out the hard-won lightweighting dividends yielded by advanced light-alloy die-castings.

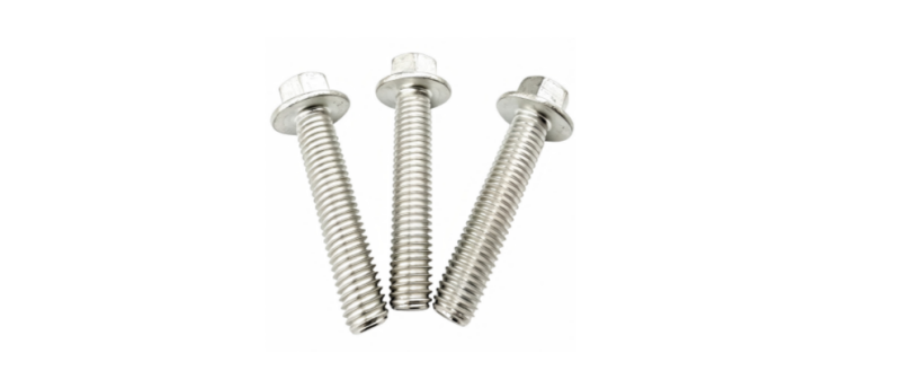

02. Hardcore Technical Advantages of ZT68 High-Strength Aluminum Bolts

To eliminate these industry paint points, YF ZCJ conducted deep, independent R&D and process innovation strictly in accordance with the stringent Volkswagen Standard VW60469. The result is the ZT68 high-strength aluminum alloy bolt, masterfully balancing ultra-high mechanical strength with exceptional corrosion resistance.

1. 630 MPa Tensile Strength: Directly Rivaling Steel Fasteners

Traditional Grade 6056 aluminum bolts are generally capped at a tensile strength of around 420 MPa. Through proprietary, optimized heat treatment and solution-aging processes, YF ZCJ has stabilized the tensile strength of the ZT68 material at 630 MPa and its yield strength at 500 MPa. This enables the seamless replacement of steel fasteners in high-performance, load-bearing applications.

2. Natural Immunity to Galvanic Corrosion

Utilizing a high-strength aluminum alloy substrate, the ZT68 bolt shares an identical electrochemical potential with aluminum components and an exceptionally close potential with magnesium components. This completely eliminates the root physical conditions required for galvanic corrosion, ensuring that the joint structure remains completely safe and reliable under extreme moisture, dust (fully satisfying IP68 standards), and long-term salt spray environments.

3. Short Thread Engagement Design: Maximizing Envelope Space

Thanks to the perfect material compatibility and optimized tightening characteristics, the required thread engagement length of ZT68 aluminum bolts in magnesium/aluminum components is reduced to just 1.3 to 1.5d. Compared to the >2 to 3d required by steel bolts, this significantly shortens the threaded hole depth, enabling a more compact, thin-walled, and spacesaving design for battery pack shells, Three-Electric housings, and chassis structural components.

4. Exceptional Thermal Exposure Stability

Under real-world operating conditions, ambient temperature fluctuations frequently trigger degradation in material properties. After undergoing prolonged, high-temperature thermal exposure at 150°C, the ZT68 material maintains an incredible 95.58% to 97.16% of its high-temperature tensile strength, with hardness holding rock-solid at 187 to 204 HV. This stellar thermal stability allows it to effortlessly master high-heat environments like NEV powertrains and high-speed AI servers.

5. Pioneering "Thread Rolling After Heat Treatment" for Multiplied Fatigue Resistance

Departing from the conventional route of rolling threads prior to heat treatment, YF ZCJ insists on high-precision thread rolling after the heat treatment process is fully completed. Through intense plastic deformation, a 200 μm compressive residual stress layer is generated at the thread root. This drastically enhances the bolt's fatigue strength, eliminates notch sensitivity effects, and ensures high-quality, "zero-defect thread" delivery.

03. Value Proposition: Focused on TCO Supply Chain Optimization

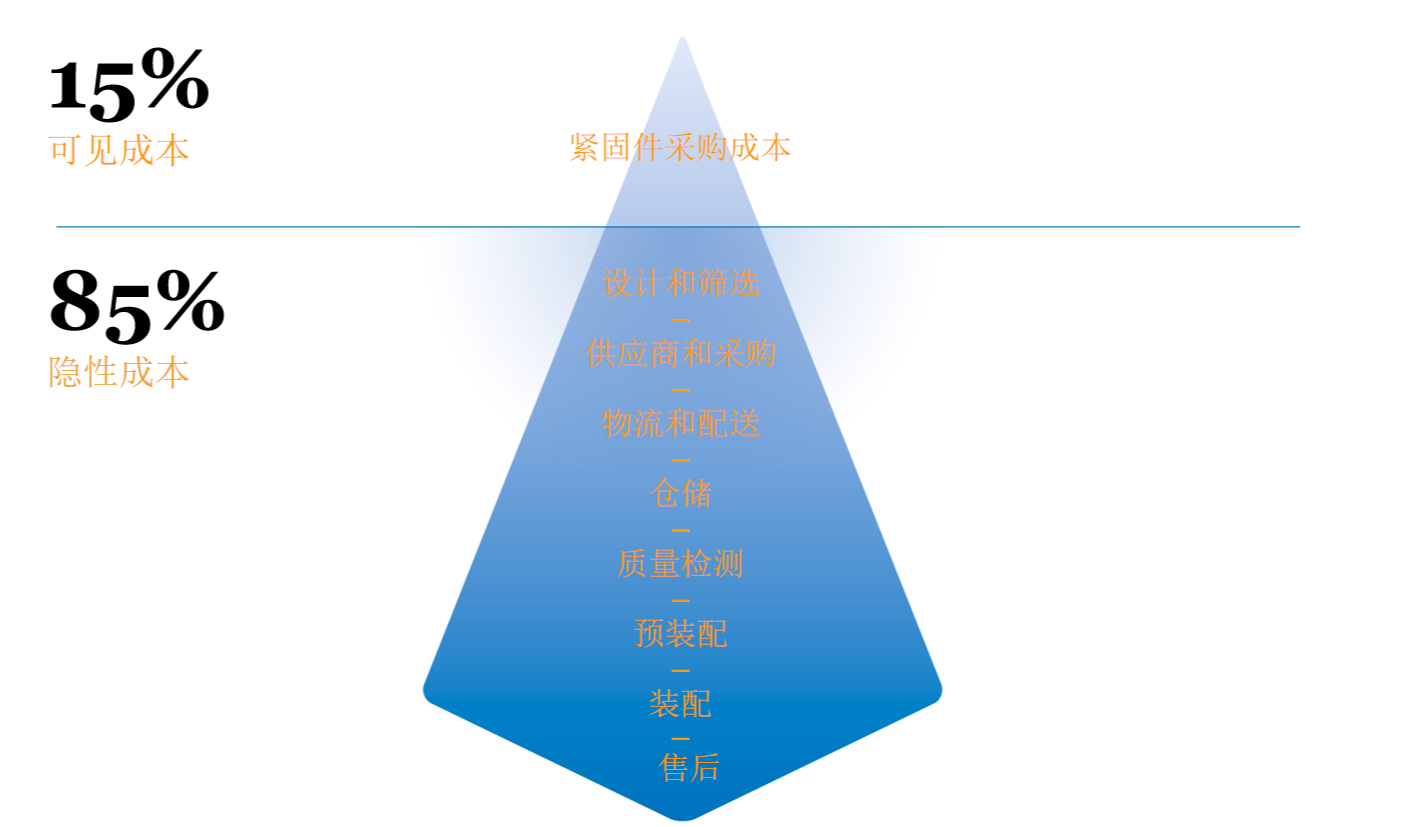

In fastener supply chain management, a distinct "Iceberg Effect" often obscures true costs:

• 15% Visible Cost: The explicit, standalone procurement price of the fastener itself.

• 85% Hidden Cost: Covering early-stage collaborative R&D, validation testing, assembly line rework due to defects, logistics failures, and the most devastating of all—aftermarket warranty claims.

          ▲  [15% Visible Cost]  --> Fastener Piece Price
~~~~~~~~~~|~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
          ▼  [85% Hidden Cost]   --> ESI, Testing, Rework, Warranty

YF ZCJ consistently upholds the customer value proposition of Total Cost Optimization (TCO) and Lightning-Fast Responsiveness. We do not merely sell components; we provide a comprehensive technical solution across the entire product lifecycle:

• Early-Stage Collaborative Design (DFM/ESI): Our expert engineering team can deeply integrate into the customer’s conceptual design phase, assisting in establishing 2D/3D drawing simulations and compressing the overall R&D cycle by over 30%.

• Cold Heading Substitution for Aggressive Cost Reductions: Leveraging over 20 years of design expertise and multi-station cold heading machinery, we have successfully converted complex aluminum alloy fasteners—which traditionally relied on high-cost CNC machining—into high-efficiency, mass-produced cold-headed components. This delivers an overall cost reduction of over 20% for our clients.

• Rapid Engineering Prototype Delivery: With full-process, closed-loop in-house manufacturing capabilities, we can deliver engineering test samples in as fast as 1 day.

04. 23 Years of Precision Fastening Mastery with Global Fulfillment Guarantees

Founded in 2003, YF ZCJ Precision Hardware has achieved deep technical accumulation and massive economies of scale over more than two decades of growth. Today, the company has deployed four modernized manufacturing bases globally (Shenzhen HQ, Pingshan, Xiangyang, and Indonesia) with a monthly capacity of 500 million units, providing robust global fulfillment and supply chain resilience.

The company is fully certified under a comprehensive suite of authoritative quality frameworks, including IATF 16949 (Automotive Quality Management System), ISO 9001, ISO 14001, ISO 45001, and IECQ QC 080000. Empowered by flawless quality control, YF ZCJ deeply serves the world’s TOP 5 NEV brands, the industry's premier smartphone supply chains, and over 100 industry-leading enterprises.

Whether you are facing the relentless lightweighting mandates of NEVs and the low-altitude economy (UAVs), or pursuing the ultra-high reliability required by humanoid robots and AI servers, the YF ZCJ ZT68 Ultra-High-Strength Aluminum Alloy Bolt is your definitive choice to optimize Total Cost of Ownership and smash through connection technology bottlenecks.

Beyond connection, we drive performance breakthroughs. We warmly welcome engineering R&D and procurement colleagues from around the world to visit our manufacturing bases. We stand ready to provide full ZT68 testing data sheets and custom sample support.
